1R Element

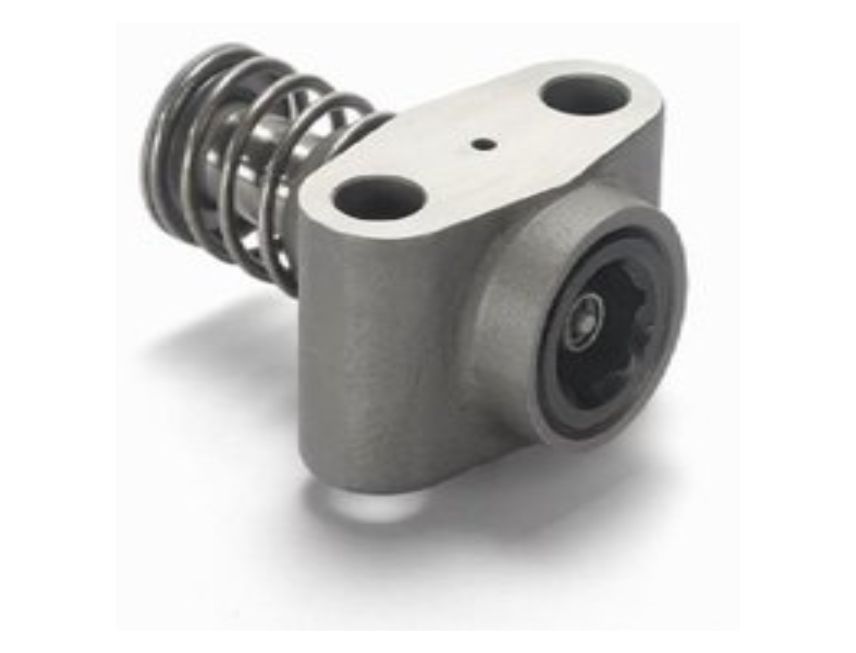

Model 1R is a Piston type self contained pumping element, supplied with its Suction valve , Delivery valve and a spring loaded piston as a single unit. It is basically meant for supplying small volume of lubricating oil under high pressure.
Product Description
For its working, the element must remain submerged in the oil all the time while pumping. Reciprocating motion of the piston gives pumping action. The motion can be imparted either by a lever, a cam or a rocker arm. Radially arranging a number of such elements around a bearing, which is mounted eccentrically on a rotating shaft and connecting all delivery port of the elements together will create a pump giving a continuous oil flow. Odd number of elements connected in such a manner will give smoother flow than even number. There are seven types of pumping elements, each having different displacement and pressure rating.
Technical specifications :
Type : Reciprocating Spring loaded piston, Oli immersed.
Mounting Standard : Factory standard.
Operating Speed range : 300 to 3000 strokes/min.
Hydraulic medium : Mineral oil.
Oil Temperature range : -20°C to + 80°C
Viscosity range : 10 cSt to 100 cSt.
Fluid cleanliness required : ISO 4406 20/18/15 or better.
