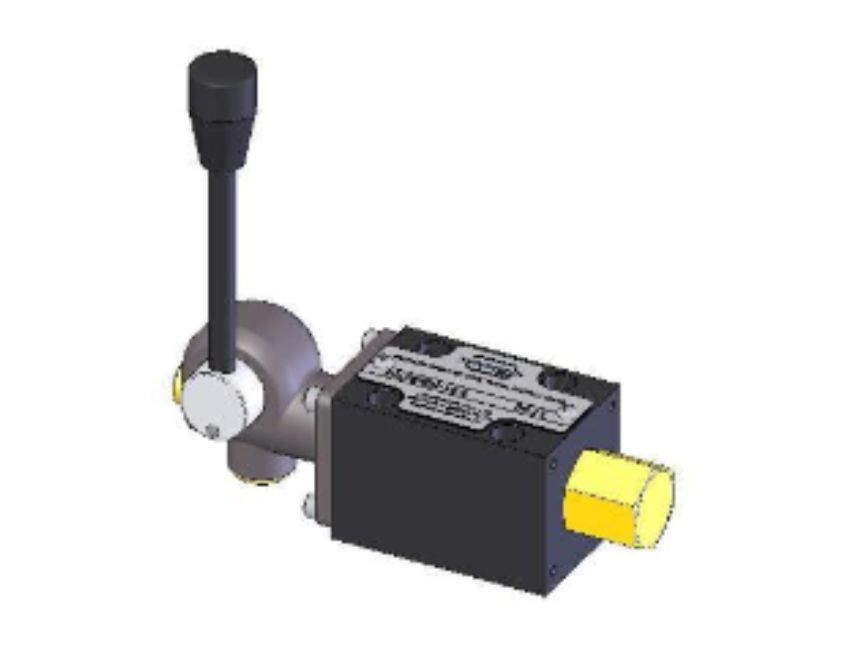

4DL06 Cetop3
4-port, spool type, directional control valves with hand lever actuation and wide variety of spool types with spring-centered, spring-offset and de-tent arrangements.
Product Description
Features :
1. Five chamber body and spool design to facilitate high flow.
2. Conforms to ISO4401-03, NFPA T3.5.1 and ANSI B93-7 D03 interface.
3. Available in 52 standard, interchangeable spool configurations.
4. New fully encapsulated hand-lever mechanism for protection against ingress of dirt. High flexibility in mounting and operation
– The operating head can be Rotated 4 x 90° around the spool axis
– The operator head can be relocated towards port b of the valve.
– Hand Lever can be rotated so that it is parallel to the axis at neutral condition.
5. Special R-rings for high extrusion resistance. Increased stability under high dynamic condition.
