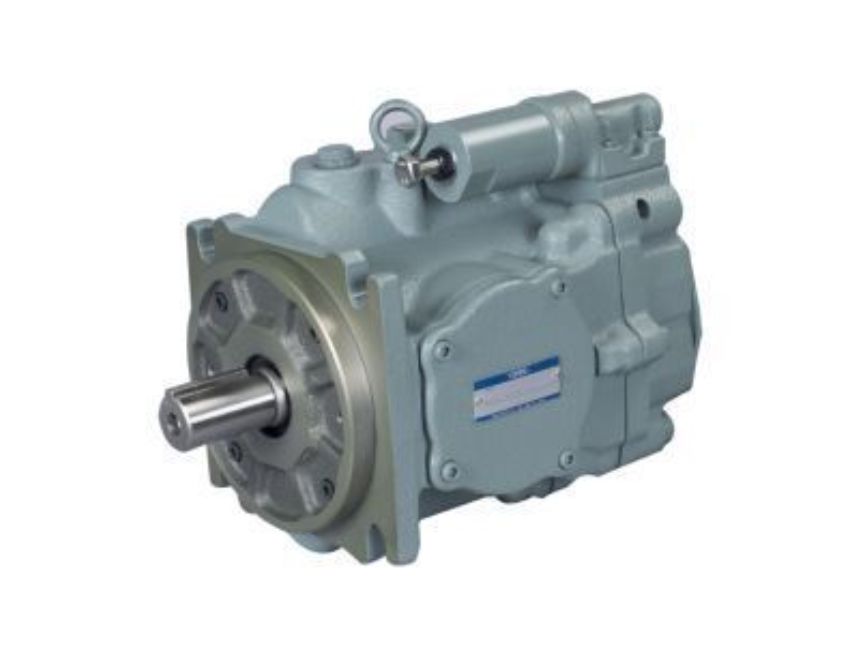

A3H Series
A3H Series Variable Displacement Piston Pumps Dealer in Chennai
Wide range of Delivery Volume :
7 models from A3H16 to A3H180 meet the wide range of delivery volume from 16.3 to 180.7 cm3/rev.
Compact Size :
Because of output power Vs. mass ratio is high , A3H -Series Pumps Dealer in Chennai could be designed in quite small size
Product Description
High Performance to meet 350 Kgf/cm2of max. operating pressure. Case for A3H37 under the condition of pressure 350 Kgf/cm2 and shaft speed 1800 r/min, the volumetric efficiency is 95% (or above) and the overall efficiency is 90% (or above).
Hydraulic Fluids. :
Use petroleum base oils such as anti-wear type hydraulic oils or R & O (Rust and oxidation inhibitor) type hydraulic oils (ISO VG 32 or 46) with a viscosity range of 20 to 400 cSt at temperature of 0-60 C both to be satisfied.
Control of contamination :
Much care should be taken to maintain control over contamination of the operating oil which can otherwise lead to breakdown and shorten the life of the unit. Please maintain the degree of contamination within NAS Grade 10.
The suction port must be equipped with at least a 100 μm (150 mesh) reservoir type filter and the return line must have a line type filter of under 10 μm.
Book Now Yuken A3H Series Variable Displacement Piston Pumps Dealer in Chennai to Get 10% Discount.
