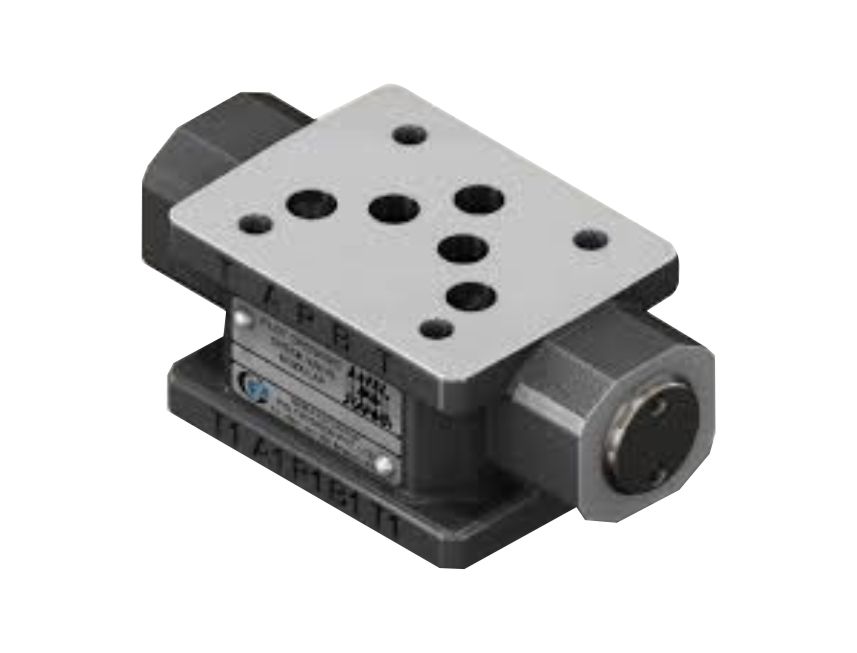

CIM10
Modular pilot operated check valves series CIM10 provide pressure holding facility on their service ports A1 and B1.
Product Description
These valves are also available with pilot check facility on either A or B port. The valve opens and allows free return flow, when the other working port is pressurized.
The valve is not suitable for holding pressure on rod end side of Double acting cylinders, where area ratio ( Bore area : Annulus area ) is equal to or greater than 3.5.The modular construction facilitates use of these valves in a vertical stack, eliminating need of piping. The interface confirming to ISO-AC-05-4-A, IS 10187, DIN 24340.
