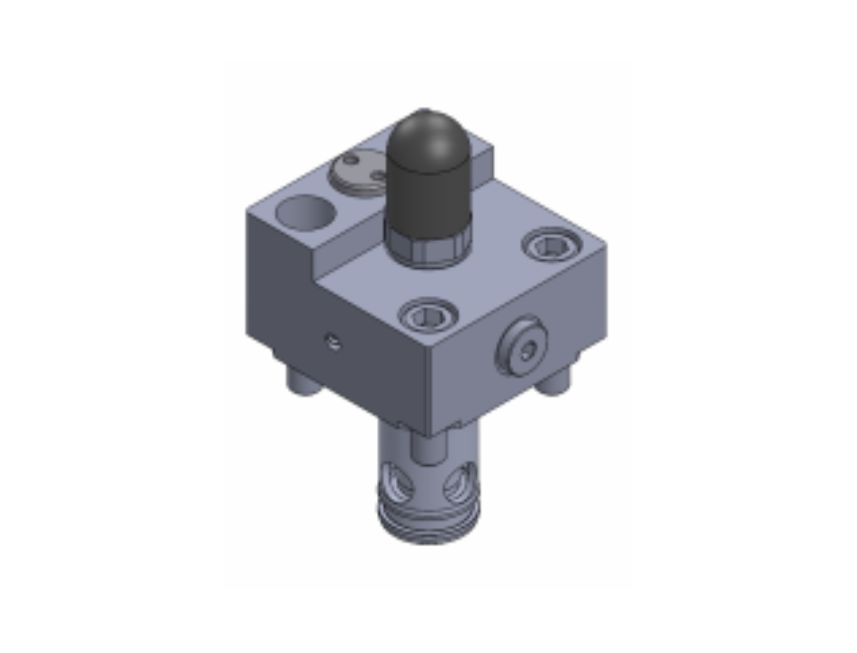

CVC-PCTS
The Covers with model CVC PC are designed to hold polyhydron make Cartridge valves.
Product Description
Model CV in cavities machined as per ISO 7368 , and provide facility to use the cartridge valve as a leakage free pilot operated check valve, when its pilot port Z1 is connected to port B of the cartridge. In this condition, the combination allow free flow from its port A to port B and free reverse flow from port B to port A when its pilot port X is pressurised.
In addition, flow passing through the cartridge , as an optional feature, can be controlled by controlling the opening of the poppet by means of a Stroke limiter screw provided on the cover. The throttling is effective in either directions. These Stroke limiters are more effective with cartridges having poppet with cushion nose.
