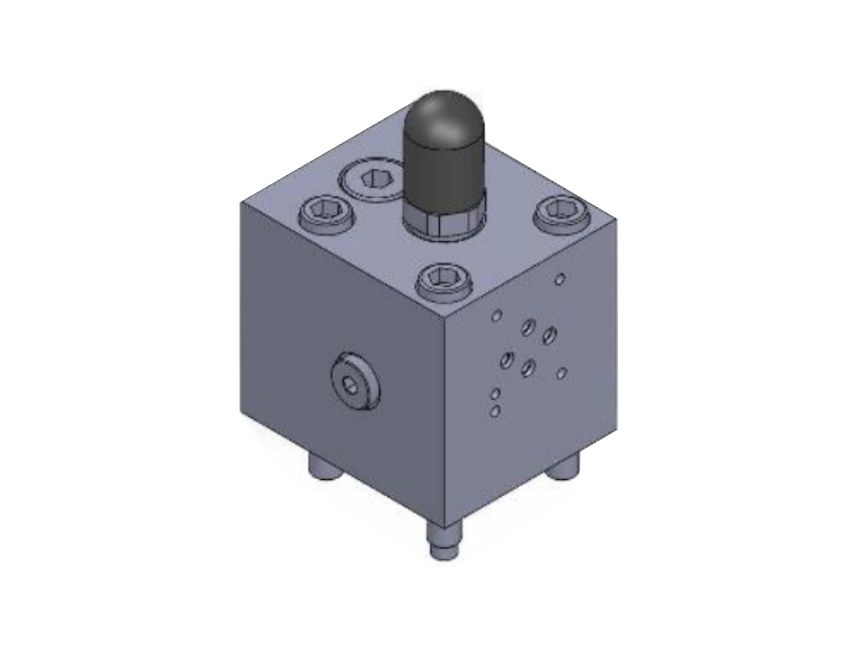

CVC-ST
The Covers with Stroke limiter model CVC*STS* are designed to hold polyhydron make Cartridge valves
Product Description
model CV*** in cavities machined as per ISO 7368 , and control opening and closing of the cartridge valve by electrical signal. Effective closing pressure is the pressure from either port ‘X’ or ‘Z1’, which ever is higher. Cover has built-in seat type shuttle valve to select pressure for closure of the cartridge. The flow passing through the cartridge can be controlled by controlling the opening of the poppet by means of a Stroke limiter screw provided in the cover .
The throttling is effective in either directions. Clockwise rotation of the Stroke Throttle screw will decrease the flow passage, thereby decreasing the flow. A check nut is provided to lock the Throttle Screw in its position. A soft rubber cap prevents accidental damage to the Throttling Screw . These Stroke limiters are more effective with cartridges having poppet with cushion nose
