DG5S8

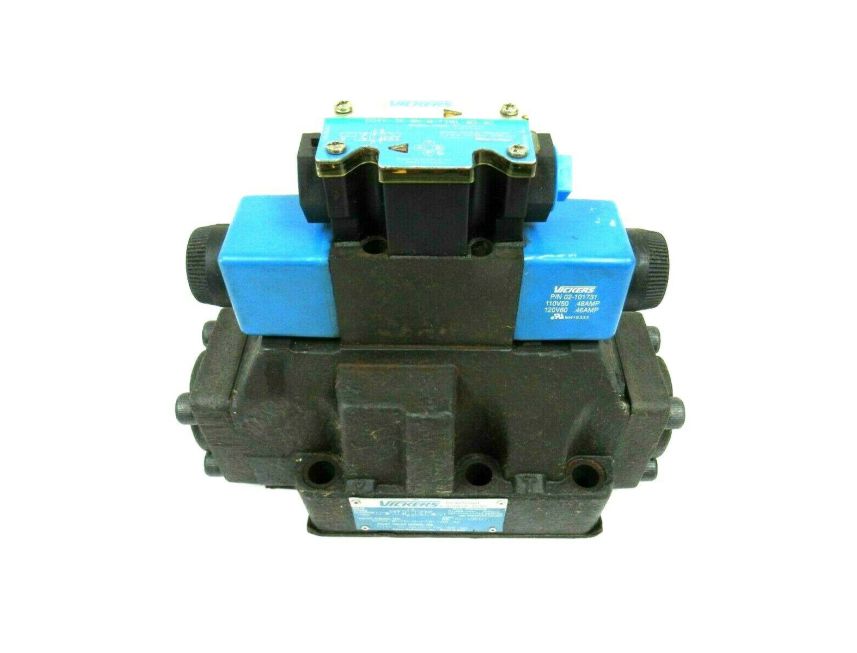

The DG5S-8 and DG5S-H8 are two-stage directional valves with an integrally mounted DG4V3(S) (wet armature solenoid) pilot valve. These valves are used to control the direction of flow in hydraulic circuits. This directional control in turn provides control over the movement of a cylinder or the rotation of a hydraulic motor.
Product Description
• Suitable for the most demanding industrial applications with DG5S-H8flow capacities up to 530 L/min (140USgpm) and rated pressure of 310 bar(4500 psi).
• Available with a wide variety of spool and spring arrangements, stroke and pilot choke adjustments, integral check valves, and port orifices.
• Uses Vickers DG4V3(S) pilot valve for exceptional responsiveness, durability, and ease of servicing.
• Numerous electrical options allow full compatibility and easy, reliable connection in any system application.
• Fast response and standard low shock models available.
• Solid cast body and core passages for maximum strength and minimal pressure drop.
• High-force solenoids and centering springs assure consistent shifting through a wide range of pressure and silting extremes.
• Designed and backed by Vickers, with over 70 years as the global leader in fluid power and motion control
