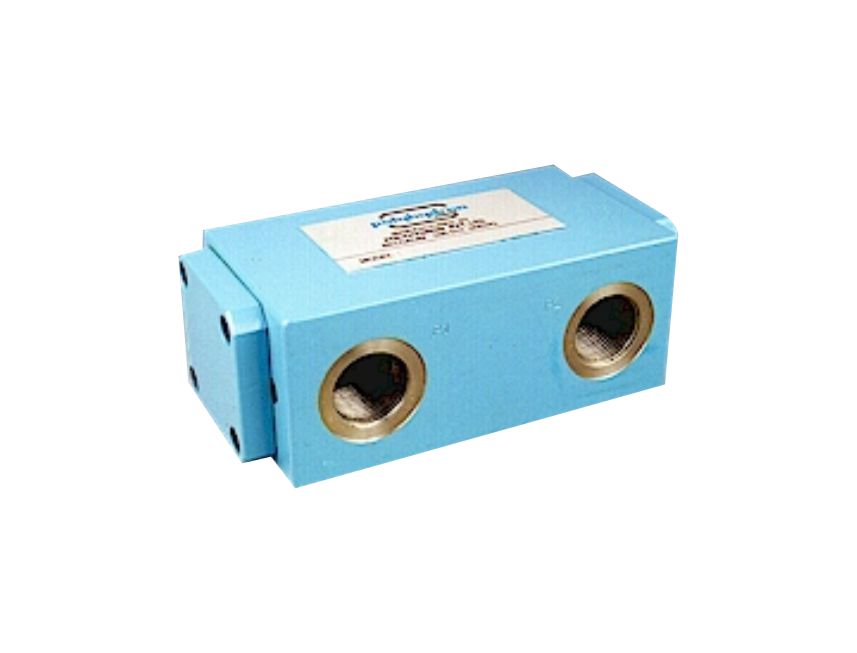

Flow Divider Valve FD
Flow divider valves provide dual flow from a single source at a predetermined ratio, regardless of load.
Product Description
Maximum dividing error is < ±5% Threaded port body
Technical Specifications :
Construction ………………………………….. Pressure compensated spool type.
Mounting type ……………………………….. Threaded body.
Mounting position ……………………………. Horizontal.
Pressure drop across valve ……………… Refer graph.
Dividing accuracy ……………………………. ± 5%
Fluid ……………………………………………… Mineral oil.
Fluid temperature range …………………… -20 °C to +70 °C.
Fluid cleanliness requirement …………… As per ISO 16/3 or better.
Flow range …………………………………….. Refer ordering code
Operating pressure …………………………. 315 bar.
