GMA

Product Description

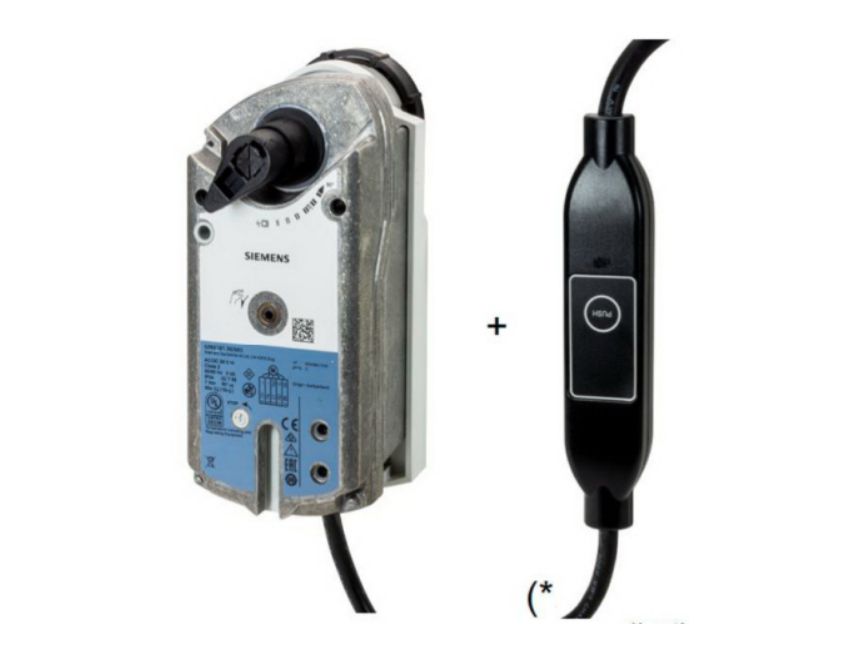

GMA Rotary Actuators for Ball Valve Suppliers in Chennai
Description :
Electromotoric actuators for 2-position, 3-position and modulating control, with spring-return, pre-wired with 0.9 m long connection cables, for the operation of Siemens 2-port and 3-port valves, types VAG60../VBG60.., VAI60../VBI60.., VAG61../VBG61.. and VAI61../VBI61.. .

Torque : 7 Nm
Positioning time : Opening with motor: 90 s, Closing with spring: 15 s
Spring return function : Yes
Degree of protection : IP54
Ambient temperature, operation : 32…55 °C
Dimensions (W x H x D) : 93 x 112 x 184 mm
Mounting position : Upright to horizontal
Operating voltage : AC 24 V, DC 24 V
