GQD..9A
GQD..9A Rotary Actuators for Ball Valve Dealers and Distributors in Chennai. We are engaged in offering a comprehensive range of GQD..9A Rotary Actuators for Ball Valve to the clients. Our customers can avail these products in different specifications from us.
Product Description

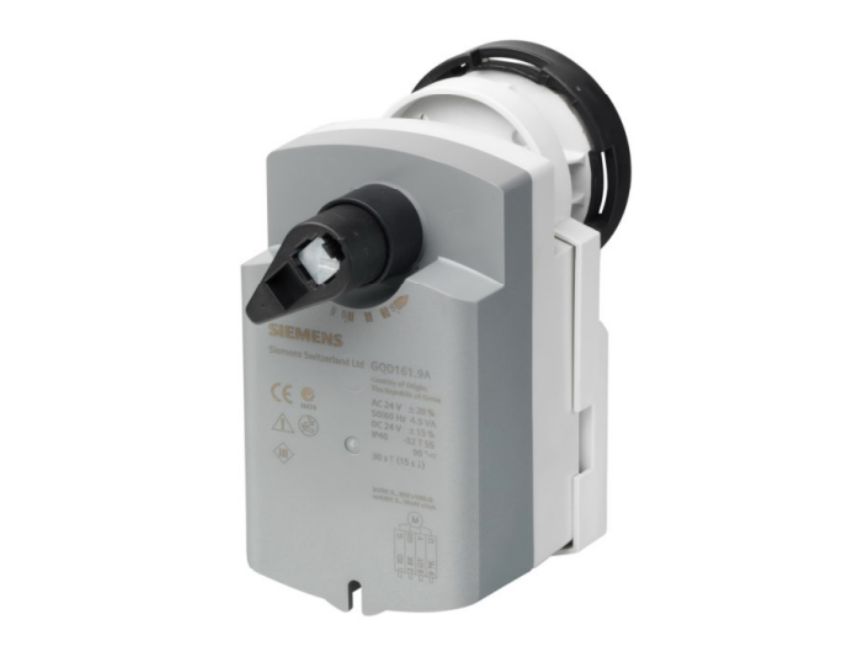

GQD..9A Rotary Actuators for Ball Valve Suppliers in Chennai
Description :
Electromotoric actuators for 3-position and modulating control, with spring-return, pre-wired with 0.9 m long connection cables, for the operation of Siemens 2-port and 3-port valves, types VAI61../VBI61.., VAG61../VBG61.., VAI60../VBI60.. and VAG60../VBG60…
Technical Specifications :
Torque : 2 Nm
Positioning time : Opening with motor: 30 s, Closing with spring: 15 s
Spring return function : Yes
Degree of protection : IP40
Ambient temperature, operation : 32…55 °C
Dimensions (W x H x D) : 75 x 113 x 136 mm
Mounting position : Upright to horizontal
Operating voltage : AC 24 V, DC 24 V
Position feedback : DC 0…10 V (GQD161.9A)
