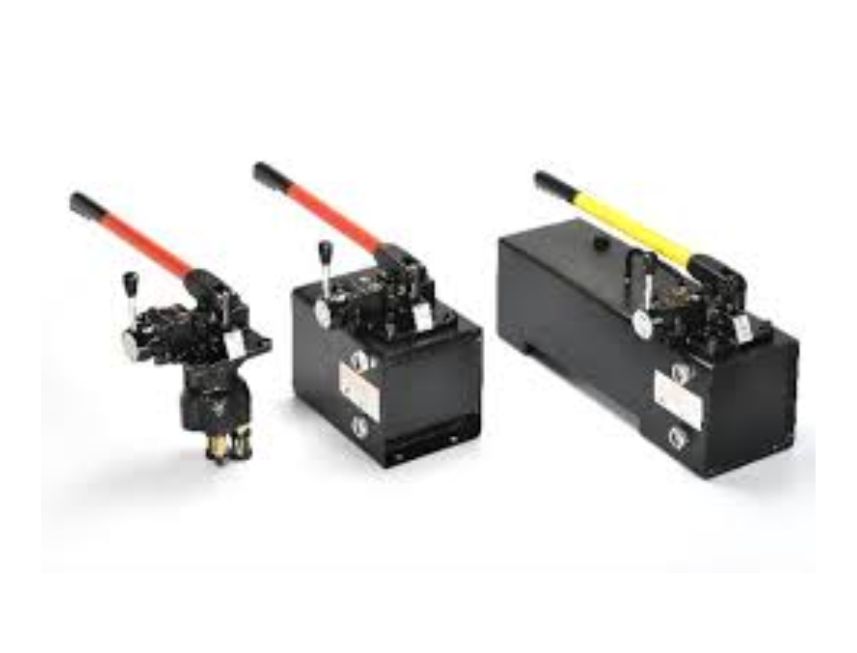

HP5012-16-D
Feed and power hand pump models HP5012**-D and HP5016**-D are meant for applications where initial travel of the cylinder / jack, to which it is connected, and is under no load or very low load.
Product Description
The pump provides considerably high displacement under low pressure for rapid travel of the cylinder / jack and then automatically changes to low displacement when pressure starts rising ( above 30 bar ), there by reducing the efforts required to operate the pump.
These hand pumps are provided with integrated Rotary Directional Control Valves with two outlet ports for switching of the hand pump power between the two sides of a double acting cylinder.
