HPV22M Series

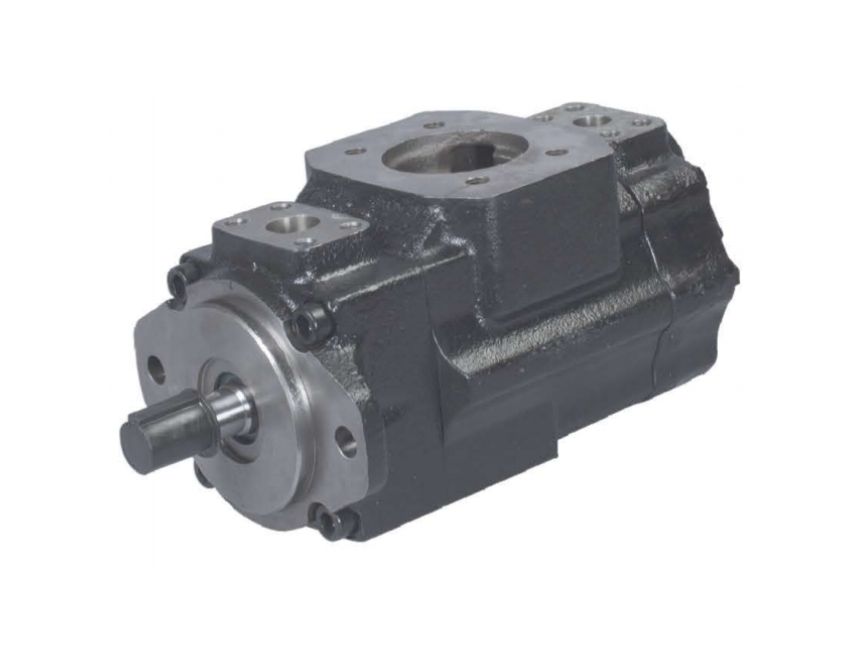

HPV22M High Pressure High Speed Double Pump Dealer in Chennai These double pumps consist of two HPV2 series single pumps combined in tandem within a single housing and driven by a common shaft.

Download PDF

Fluid delivered from the two-separate ports can be either supplied to separate or common circuits. These HPV pumps are designed for high-pressure functions. Suitable for mobile applications like Drill rigs, Railways & Construction Equipments.

Hydraulic Fluids :
Suction Pressure
Suction line pressure limit -0.20Kgf/cm2to +0.30Kgf/cm2

Cleanliness
Contamination level should be within NAS class 9. Use of 100μm(150 mesh) tank filter on suction side, 50mm above the tank bottom surface.

Alignment of Shaft
Employ a flexible coupling whenever possible & avoid stress from bending or thrust. Maximum permissible misalignment is less than 0.1mm(0.004Inches) TIR & maximum permissible misangular is less than 0.2 ̊

Order Now HPV22M High Pressure High Speed Double Pump Dealer in Chennai to Get 10% Discount.
