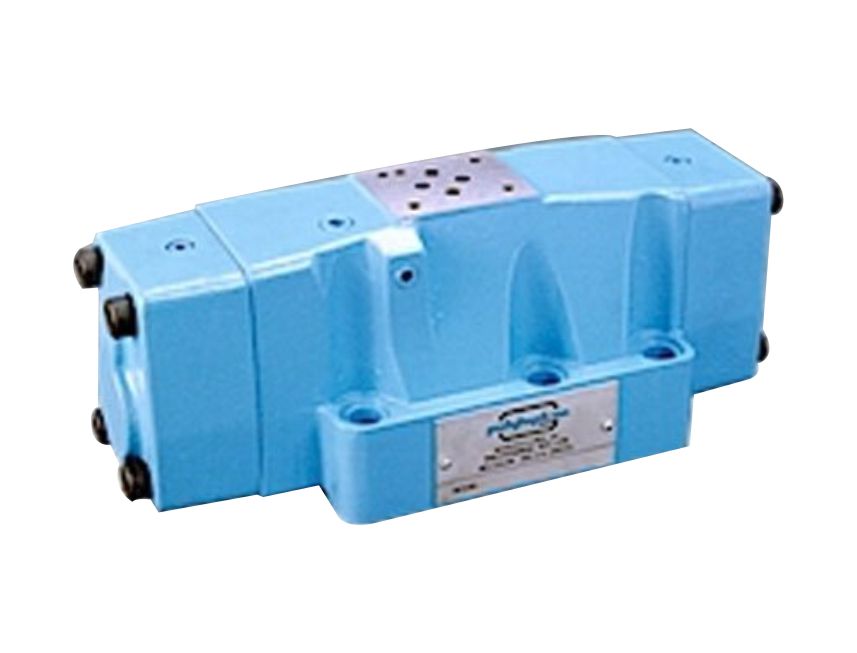

Pilot DC Valve DEP20
Completely encapsulated mechanism for protection against dirt. Available as spring centred, spring offset
Product Description
Valve mounting interface conforms to International and National standards.
Technical Specifications:
Construction ……………………………………………. Spool type
Mounting …………………………………………………Subplate mounting as perISO 4401 – AE – 08 – 4 – A andIS – 10187 – 20 mm. diameter nominal port
Mounting position …………………………………….. Optional
Flow direction ………………………………………….. As per spool type.
Operating pressure …………………………………..For port P, A, B and X …………………… 350 barFor port T ( for external drain ) ……….. 250 bar( for Internal drain ) ………………………. 160 barFor port Y …………………………………… 160 bar
Minimum pilot pressure …………………………….. 5 bar
Hydraulic medium ……………………………………. Mineral oil
Viscosity range ………………………………………… 10 cSt to 380 cSt.
Fluid temperature range …………………………… -20 °C to +70 °C
Fluid cleanliness requirement ……………………. As per ISO 16/13 or better.
Maximum flow handling capacity ……………….. Refer performance curves.
Mass ………………………………………………………17.5 Kg. APPROX
