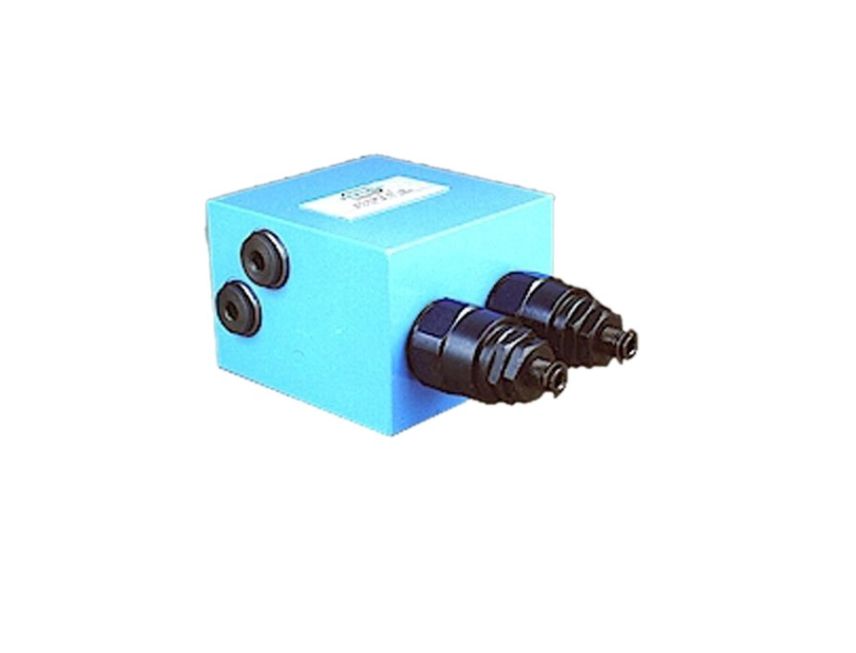

Pressure Control Module PCM-06
Designed to control double pumps of a Hi-Low system. Unloads low pressure pump when system pressure rises above the pressure set on unloader valve.
Product Description
Relieves high pressure pump when system pressure reaches the value.
Connection details :
P …….Out let connection.
LPG ….Gauge connection on low pressure pump line.
HPG ….Gauge connection on high pressure pump line.
HP ……High pressure pump connection.
T1 …….Tank connection high pressure.
LP ……Low pressure pump connection.
T2 ……Tank connection low pressure.
