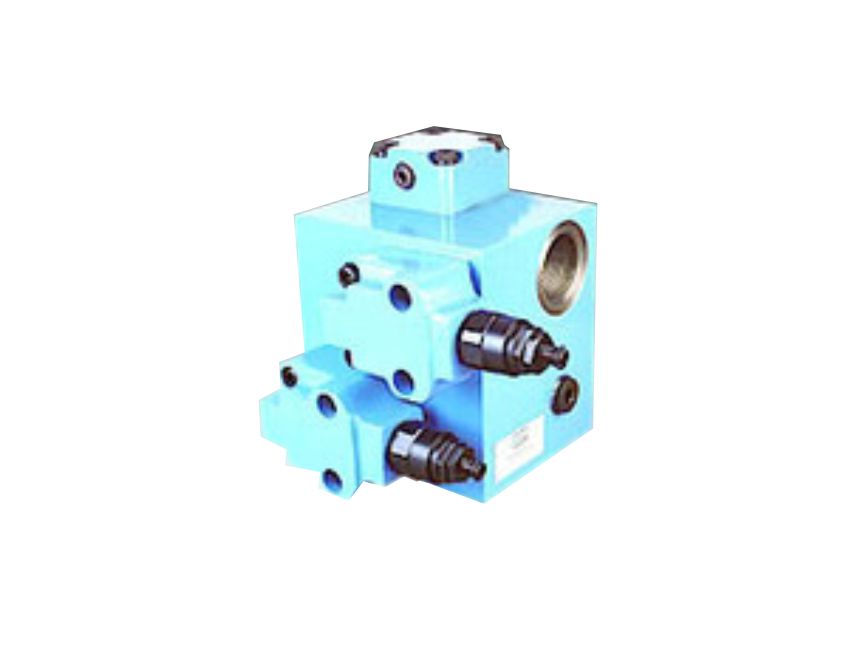

Pressure Control Module PCM 20-16
Designed to control double pumps of Hi-Low system. Unloads low pressure pump when system pressure rises above the pressure set on Unloader valve
Product Description
Relieves high pressure pump when system pressure reaches the value. Solenoid unloading facility available as an option.
Technical specifications :
Construction PCM 20/16 ………………..Two stage poppet type high pressure relief valve.Two stage poppet type low pressure unloading valve.
Mounting ……………………………………Threaded body ( Factory standard )
Mounting position …………………………Optional
Flow direction ……………………………..As per hydraulic symbol.
Operating pressure ………………………For low pressure pump 50 and 100 bar.For high pressure pump port 100, 200, 315.
Hydraulic medium ………………………..Mineral oil.
Viscosity range ……………………………10 cSt to 380 cSt.
Fluid temperature range …………………-20°C to +70°C.
Fluid cleanliness requirement ………….ISO 4406 20/18/15 or better
Mass ………………………………………….. 10.5 kg. APPROX.
