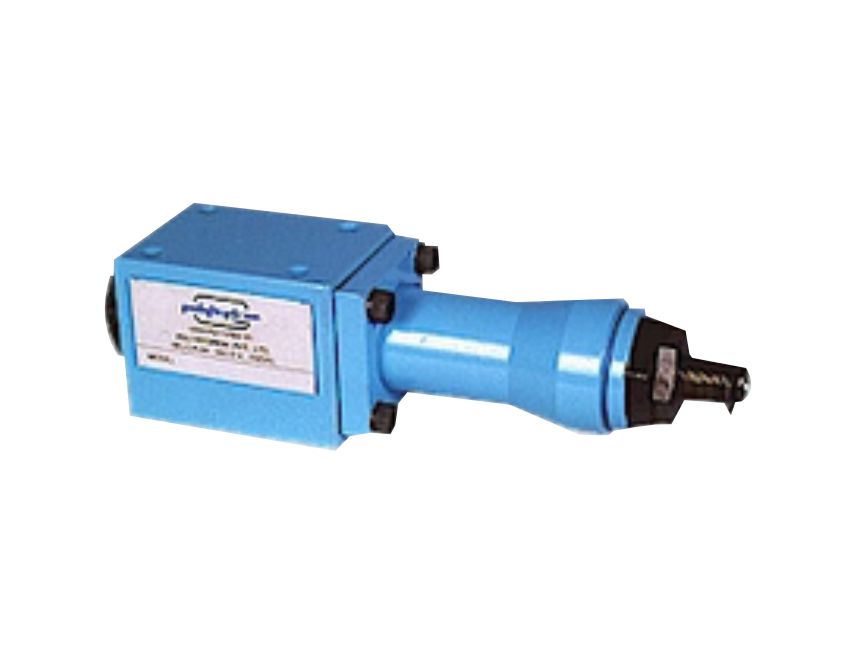

Pressure Reducing Valve DPM
Direct acting, spooltype pressure reducing valve with control of pressure from either secondary circuit (Model DPM*06SA) or from a remote source (Model DPM*06SB).
Product Description
Four pressure rating 25, 50, 100 and 200 bar with primary pressure rating to 315 bar. Pressure setting by screw of hand knob adjustment.
Technical specifications :
Construction : Direct acting spool type.
Mounting style : Sub-plate mounting.
Mounting interface : Sub-plate mounting – As per ISO 6403.
Flow direction : Free flow from Port P to Port A.
Working pressure : For Port P……………………315 bar.For Port A and Port B……200 bar.For Port T…………………….60 bar (max).
Hydraulic medium : Mineral oil.
Temperature range : -20°C to + 80°C.
Viscosity range : 10 cSt to 380 cSt.
Fluid cleanliness required : ISO 4406 20/18/15 or better.
Max. flow handling capacity : Refer graph
Mass approx. : 1.54 Kg.
