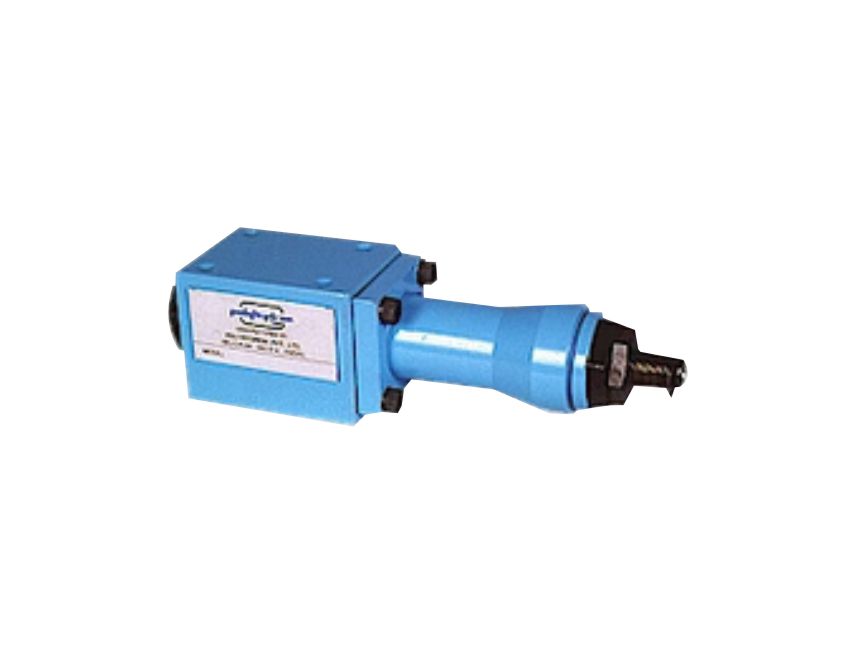

Pressure Sequence Valve DPS-06
Direct acting, spooltype pressure sequence valve. Four pressure rating 25, 50, 100 and 200 bar with primary pressure rating to 315 bar.
Product Description
Pressure setting by screw of hand knob adjustment.
Technical specifications :
Construction : Direct acting spool type.
Mounting style : Subplate mounting.
Mounting interface : Sub-plate mounting – As per ISO 6403.
Flow direction : From Port P to Port A.
Working pressure : For Port P and Port B……………………315 bar.For Port A……60 bar (max.) for model DPS*06SO** and DPS*06SX** only, 315 bar for remaining models.For Port T…………………….60 bar (max).(Pressure at Port A of models DPS*06SO** and DPS*06SX** will increase the set value of the valve by the same amount, while handling the flow.)
Hydraulic medium : Mineral oil.
Temperature range : -20°C to + 80°C.
Viscosity range : 10 cSt to 380 cSt.
Fluid cleanliness required : ISO 4406 20/18/15 or better.
Max. flow handling capacity : Refer graph
Mass approx. : 1.54 Kg.
