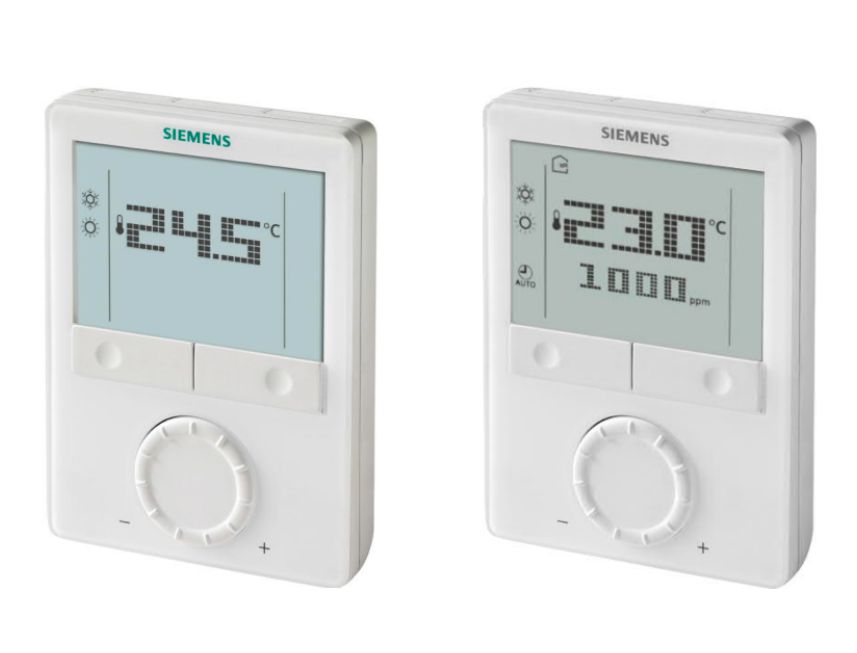

RDG400KN/RDG405KN
RDG400KN/RDG405KN Room thermostats with KNX communications Dealers and Distributors in Chennai. We are engaged in offering a comprehensive range of RDG400KN/RDG405KN Room thermostats with KNX communications to the clients. Our customers can avail these products in different specifications from us.
Product Description
RDG400KN/RDG405KN Room thermostats with KNX communications Suppliers in Chennai
Description :
• KNX bus communications (S- and LTE-Mode)
• Backlit display
• PI/P control
• Output for VAV box/air damper: DC 0…10 V/3-position/KNX LTE-Mode
• Output for heating/cooling coil: On/Off, PWM or 3-position/DC 0…10 V
• Output signal inversion as an option (DC 0…10 V Æ DC 10…0 V)
• 2 multifunctional inputs for keycard contact, external sensor, etc.
• 1 DC 0…10 V input for external sensor or feedback of air damper position
• Operating modes: Comfort, Economy and Protection
• Control depending on room or return air temperature
• Optimized operation of supply air fan: Input DC 0…10 V for feedback of air damper position
• Automatic or manual heating/cooling changeover
• Minimum and maximum limitation of room temperature setpoint
• Minimum and maximum limitation of air flow signal
• Adjustable commissioning and control parameters
• Commissioning with Synco ACS790, ETS or via local HMI
• Integration into Synco; integration into Desigo via group addressing (ETS) or individual addressing
• Integration into third-party system via group addressing (ETS)
• Indoor air quality (IAQ) control loop with external CO2 sensor (DC 0…10 V or KNX LTE- and S-Mode) (RDG405KN)
• Operating voltage AC 24 V
• Interworking with KNX CO2/temperature sensors (LTE- and S-Mode)
RDG400KN/RDG405KN Room thermostats with KNX communications Dealers and Distributors in Chennai.
