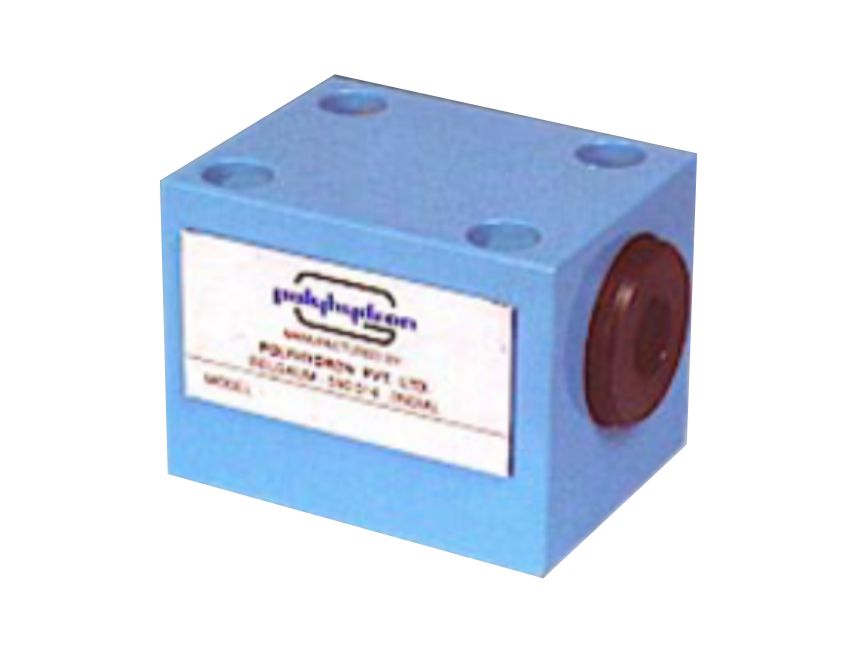

Shuttle Valve SL
Seat type construction. Automatically connects its P port to either A or B depending upon whichever of two ports is at higher pressure level.
Product Description
Isolates port A and port B from each other. Port P can be connected to tank only if port A and port B are connected to tank.
Technical specification :
Construction ……… Seat type.
Mounting style …….. Cartridge, Threaded connection. (Factory standard) or Subplate type conforming to interface as perISO 4401 – AB – 03 – 4 – A, DIN 24340, ISI 10187.
Mounting position …….. Optional. (Valve axis horizontal preferred.)
Direction of flow ……… A to P if pressure ar A > B.B to P if pressure ar B > A.P to A and B if A and B are at equal pressure level.(This condition can be used to connect P to tank)
Operating pressure ……… 315 bar.
Hydraulic medium ………. Mineral oil.
Viscosity range ……… 10 cSt to 380 cSt.
Fluid temperature range ……….. -10 °C to +80 °C.
Fluid cleanliness requirement ……… As per ISO 16/13. or better.
Flow handling capacity ………… Refer graph.
Mass ……….. Threaded type …. 0.75 kg.Subplate type …. 0.83 kg.
