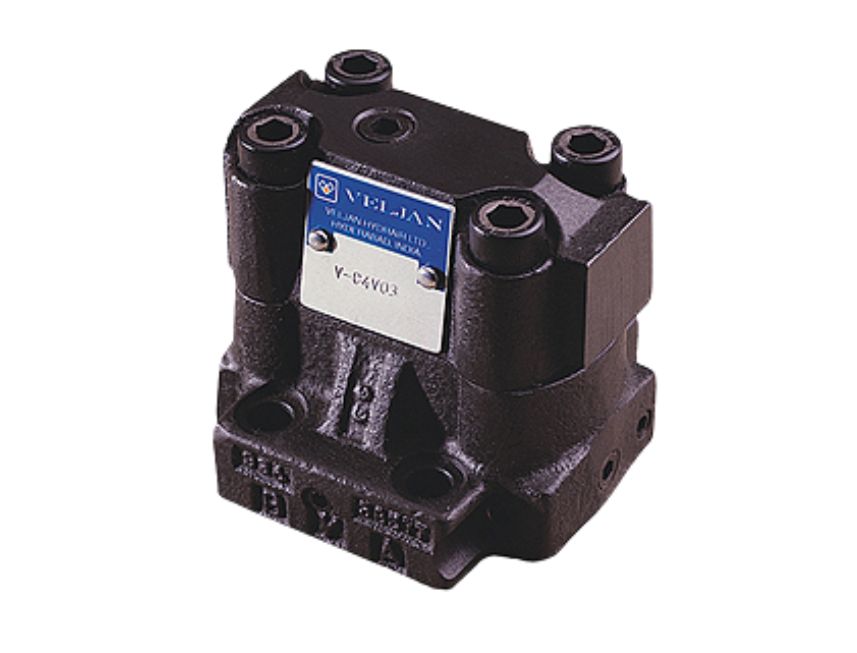

VC4V 03 / 06 / 10 Series
Veljan Direct operated Check Valve Series VC4V are poppet type and designed for a maximum pressure of350 bar and a flow capacity ranging from 180 l/min for a 3/8” valve to 600 l/min for 1 1/2″ valve.
Product Description
Mounting configuration of VC4V are in accordance with International standards such as CETOP, ISO, DIN or NFPA. Subplate mounting, L – body and T – body are standard. VC4V valves can be used as body type units or cartridges for manifold applications.
A zero-leak condition can be achieved for flow from port B to port A and free flow in the opposite direction. Due to a precise ratio between the main piston area and its mass, an exceptional fast response can be obtained. Only a small opening stroke of the poppet causes free flow from port A to port B.
