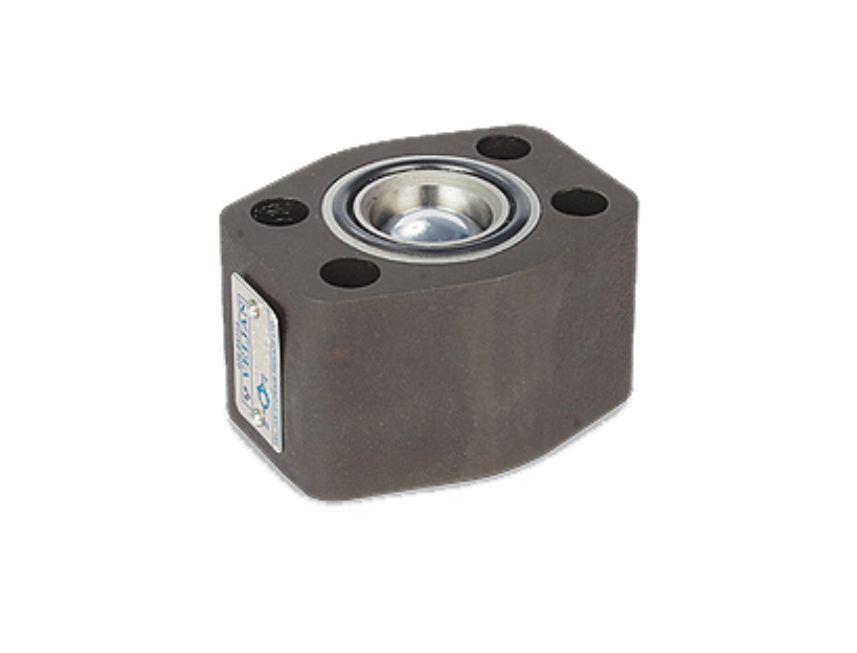

VC5V 06 – 08 – 10 -12 Series
Veljan flange mounted Check Valves VC5V, B-design series are direct operated BALL type design suitable for mounting directly on the delivery port of Veljan Vane Pumps or any SAE-61/SAE-62 port. These valves can be used in conjunction with Veljan VR5VNR5U pressure control valves in stack formation.
Product Description
VC5V check valves are designed for use up to 6000 psi pressure and are available with a choice of 7.1,14.2 and 28.4 PSI (0.5, 1.0 & 2.0 bar) cracking pressure springs in each size.
VC5V – B design check valves used in conjuction with VR5U unloader valves have an additional portX for providing the pilot to the VR5U valve. These check valves have zero leak from port-B to port-A and full flow in the opposite direction above the cracking pressure.
