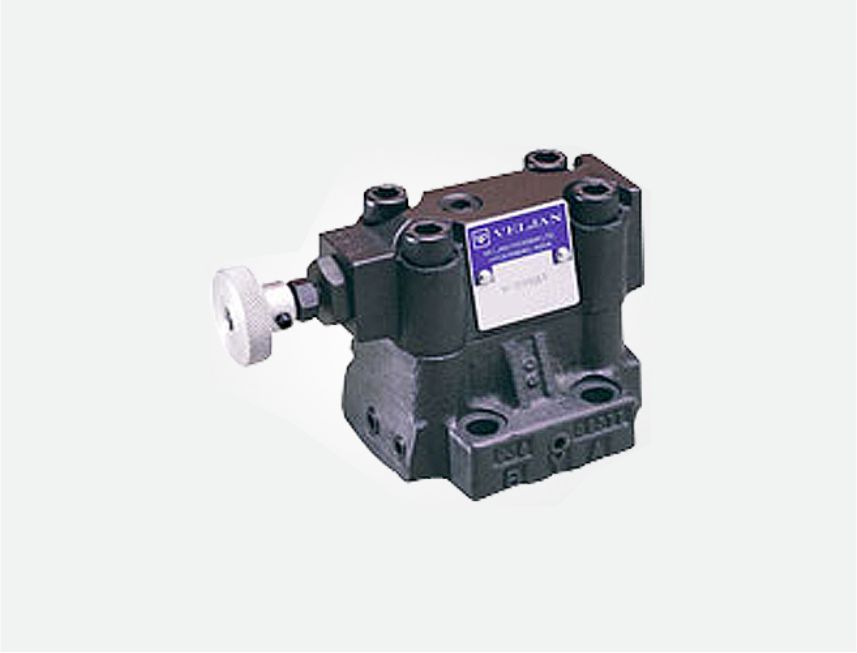

VR4S 03 / 06 / 10 Series
Veljan Sequence Valve Series VR4S are pilot operated controls and enable a hydraulic system to operate in a sequence. Fluid is allowed to pass to a secondary system ( Port B ) after the primary system ( Port A ) pressure reaches the preadjusted value set at pilot spring.
Product Description
VR4S consists of a high flow poppet type seat valve section controlled by the low flow, adjustable pilot section mounted on top. Pressure setting is altered by means of a knurled knob. For tamper proof setting , acorn nut with lead seal is available as option. Optional vent valve VVV01sandwiched between the pilot section and the main body can be used for venting the VR4S valves. Pilot drain can be taken out externally from a pilot head or from a subplate.
Exceptionally fast response is obtained due to the precise ratio between the main piston area and its mass. The unique design features of pilot allows for accurate and stable secondary pressure controls. Precise adjustment and quick response eliminate pressure variation and system shocks.
