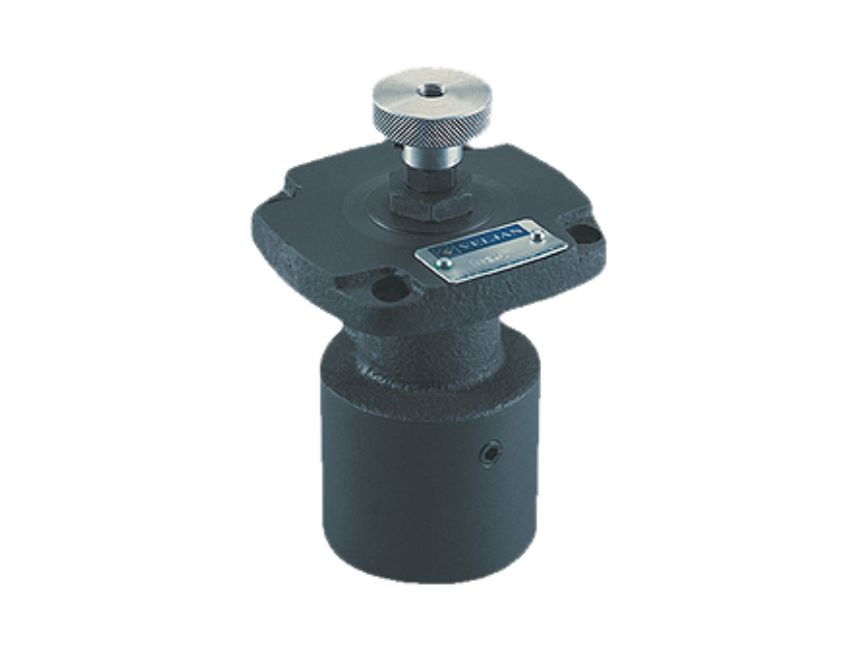

VRIE02 Series
Veljan Pressure control valves are superior in performance and design – even under high flow conditions at maximum operating pressure of 5000 psi (350 bar). Series VR1E02 is a direct operated pressure relief valve designed to control system pressure remotely.
Product Description
Pilot operated pressure control valves series VR4* & VR5*consist of two valve sections: a high flow poppet type seat valve section controlled by the low flow and adjustable pilot section mounted on top.
VR4* series are offered for various mounting options, subplate or pipe mounted, or as cartridge assemblies for manifold applications. VR5* series pressure control valves are flange type suitable for mounting directly on pump delivery port thereby minimising piping and saving space. The internal operating components of flange mounted Pressure Controls (VR5* series) are same as those ofVR4* series.
Pressure Relief Valves (VR4V/VR5V) offer precise and smooth limitation of the system pressure in a hydraulic system. Pressure Unloading Valves (VR4U/VR5U) are used to unload a circuit at preset low pressure when a pilot signal higher than the preset low pressure from external source is maintained (at Port X). This saves considerable energy.
