Cartridge Valves

Product Description

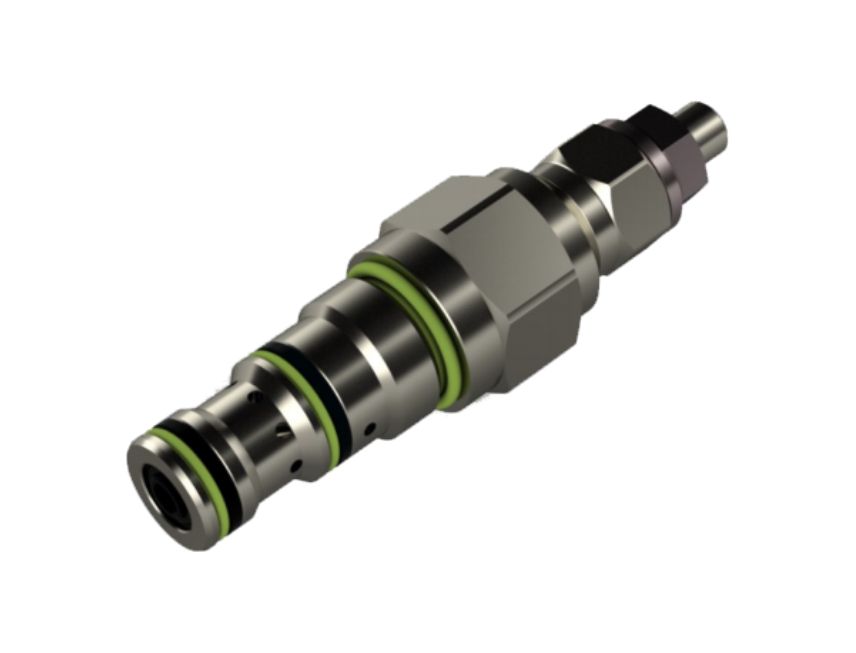

YC Series Load Holding Cartridge Valves Dealer and Distributor in Chennai :
Load holding cartridge valves with internal and external pilot are used to control overrunning load, The check valve allows free flow from the directional valve (port 2) to the load (port 1) while a direct-acting, pilot-assisted relief valve controls flow from port 1 to port 2. Pilot assist at port 3 lowers the effective setting of the relief valve at a rate determined by the pilot ratio.

Features :
* 3:1 pilot ratio with adjustable setting.
* Maximum operating pressure 350 bar.
* Minimum setting pressure 35 bar.
* Maximum flow rate 60 lpm.
* Maximum valve leakage at reseat : 5 drops/minute.
